Working Principle

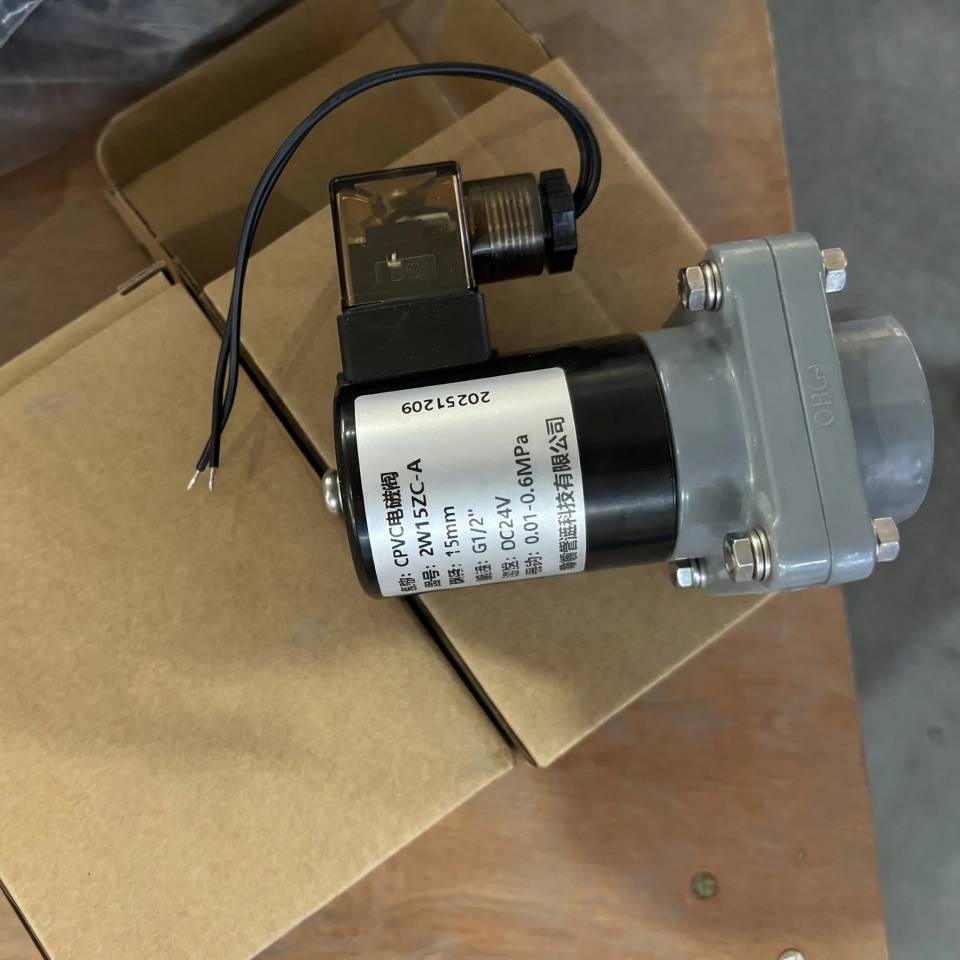

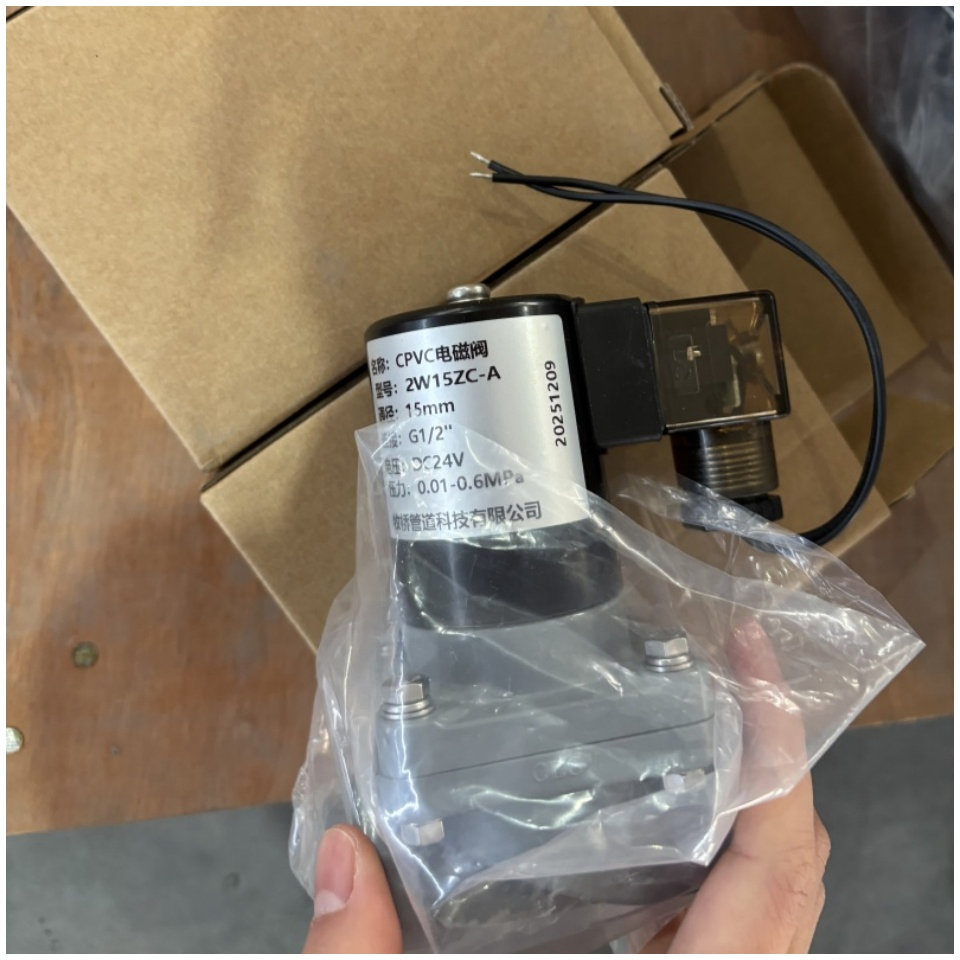

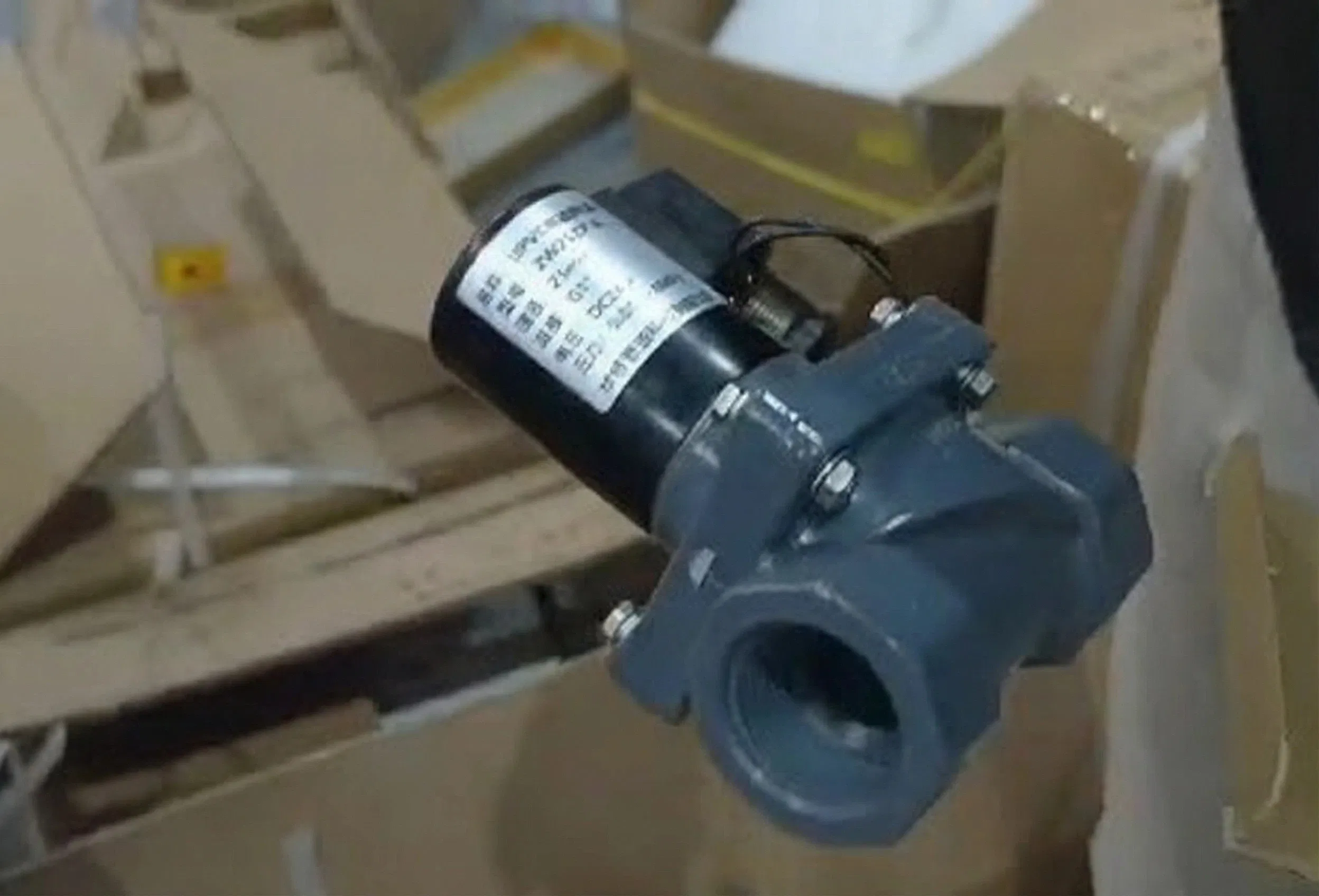

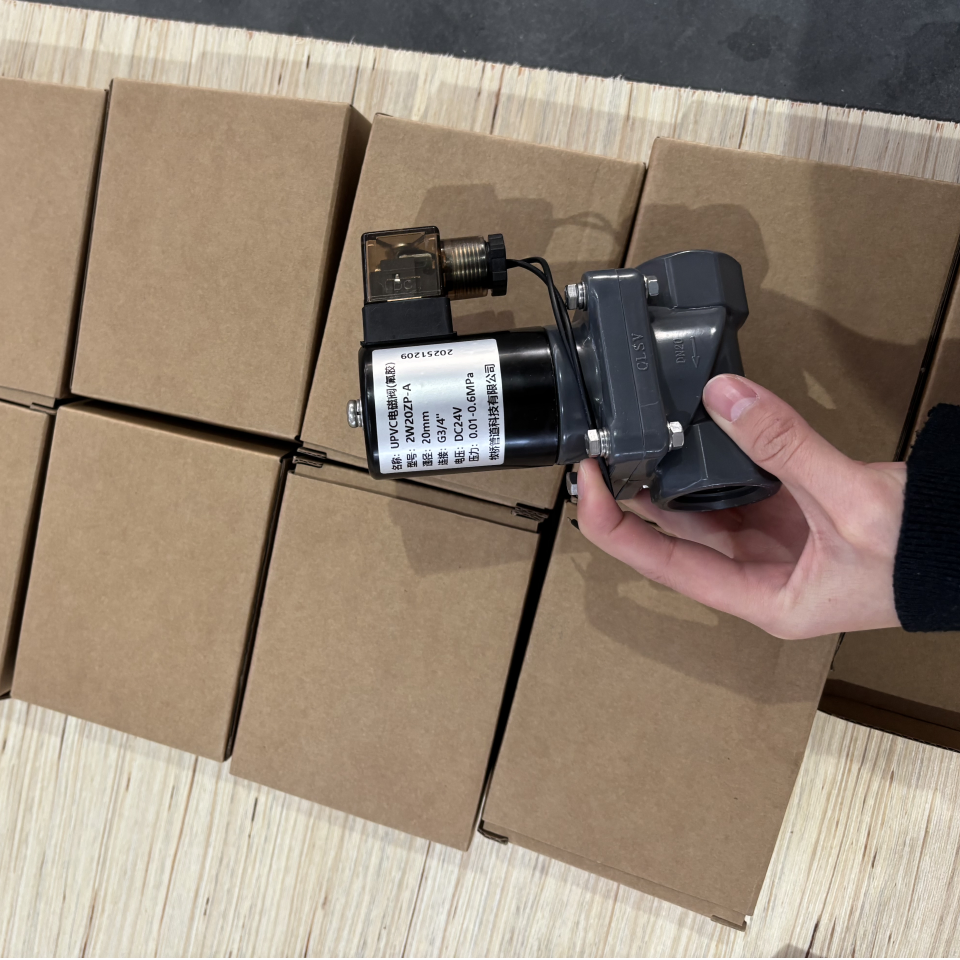

This series of two-position two-way anti-corrosion solenoid valves are essential switch components in automatic control systems. They are designed for the on/off control of pipelines carrying acid and alkali liquids, making them ideal for chemical and electrochemical corrosion environments.
🔹 Wide Application: Used in chemical, metallurgical, textile, pharmaceutical, dyeing, brewing, and environmental protection industries.
🔹 Material Options: Available in UPVC and CPVC with pilot piston structures for high pressure and rapid response.
🔹 Standard Feature: All products include low-temperature coils for optimized performance.
| Valve Body Parameters | |
|---|---|
| Body Material | UPVC, CPVC |
| Nominal Diameter | DN15-50 |
| Working Pressure | 0.3bar~6bar (NC), 0.3bar~5bar (NO) |
| Sealing Material | FPM, EPDM |
| Connection | Threads |
| Structure | Pilot Piston Structure |
| Coil | Cryogenic Coil |
| Voltage | AC220V, DC24V |

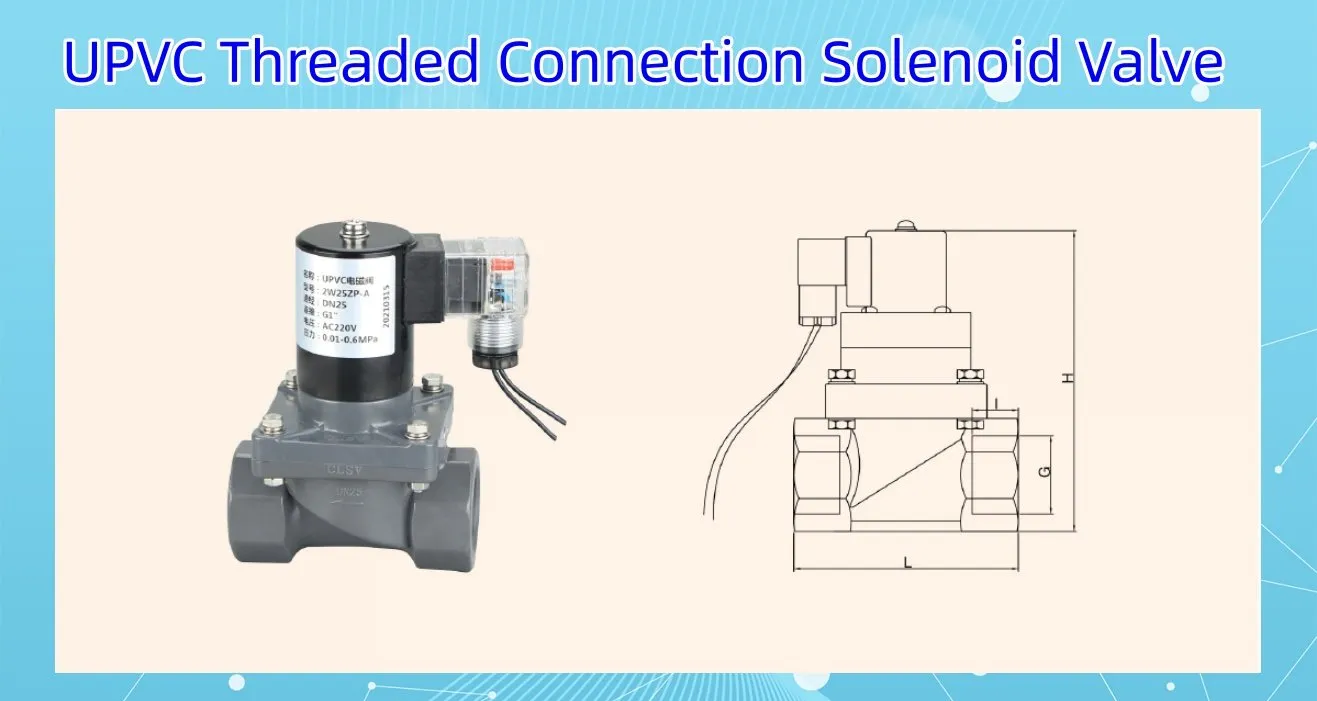

| Nominal Diameter | I | H | L | G (Internal Thread) |
|---|---|---|---|---|
| DN15 | 13 | 124 | 74 | G1/2" |
| DN20 | 16 | 129 | 79 | G3/4" |
| DN25 | 20 | 139 | 99 | G1" |
| DN32 | 20 | 163 | 119 | G1 1/4" |
| DN40 | 26 | 171 | 129 | G1 1/2" |
| DN50 | 29 | 224 | 170 | G2" |
