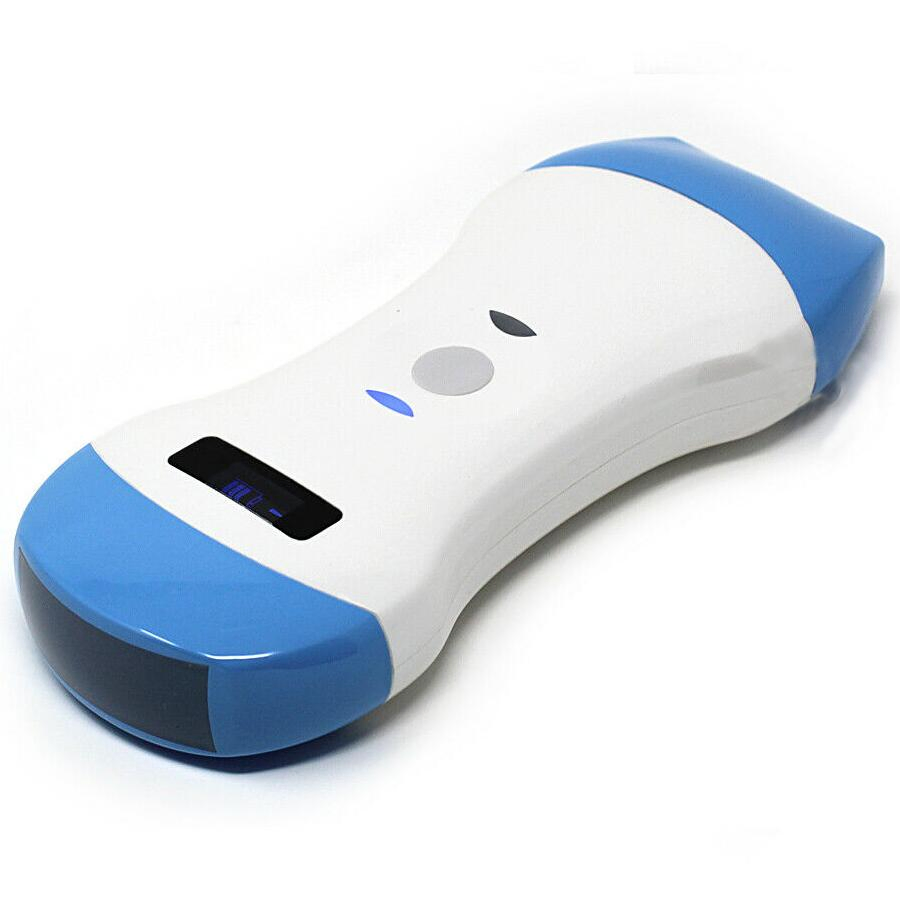

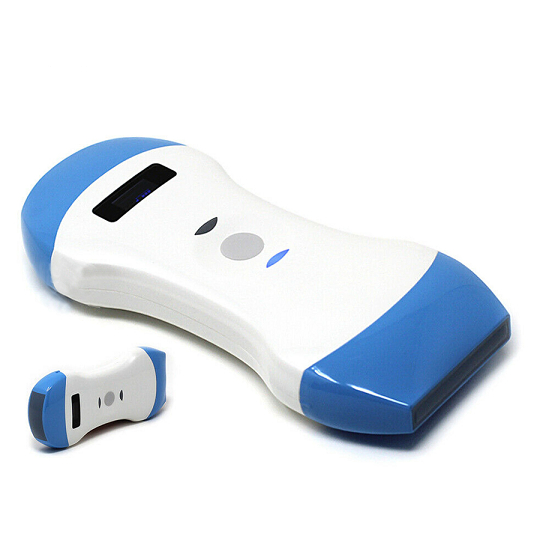

2. Product Description

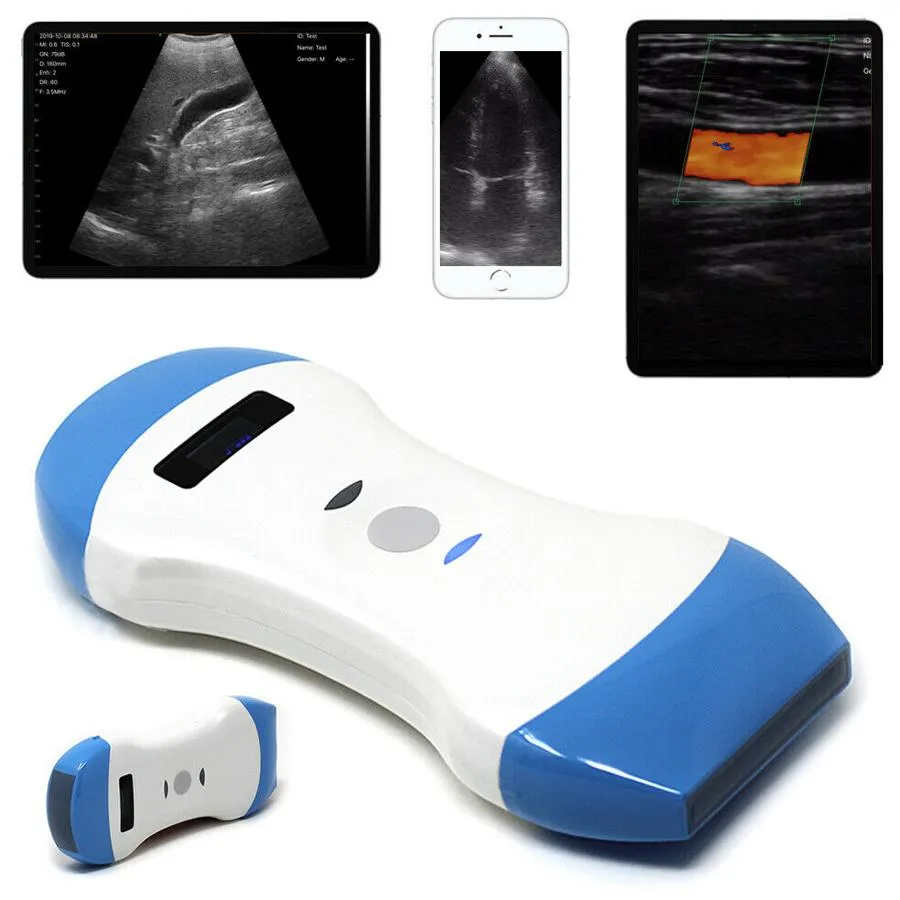

- Scanning mode: Electronic array

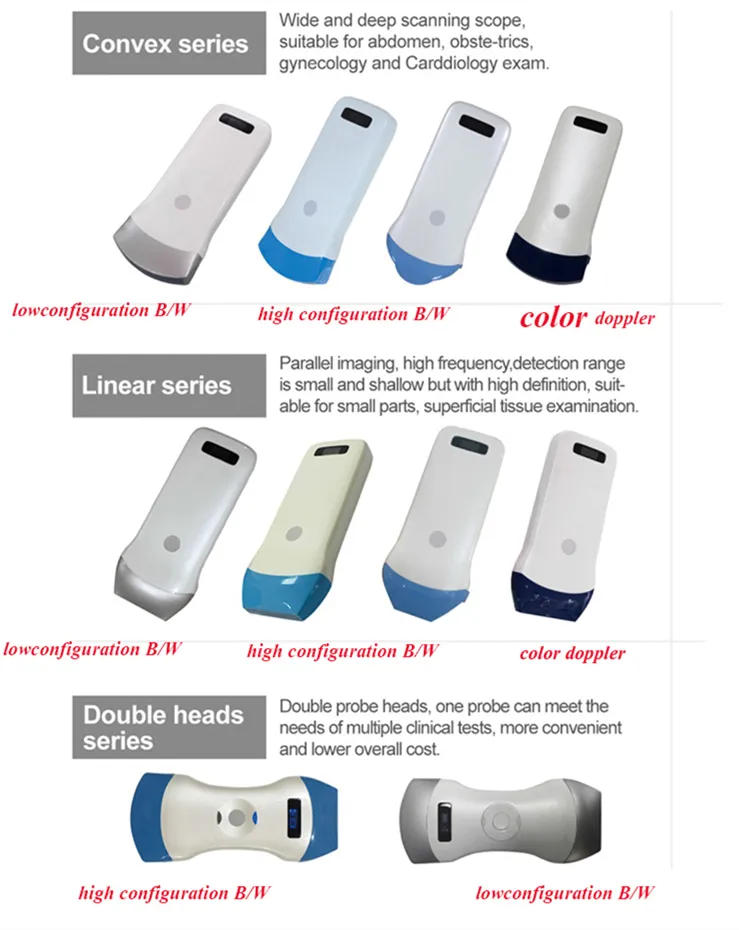

- Probe Type: Consist by Convex and Linear, Convex with mode of Phased array(cardiac) scan

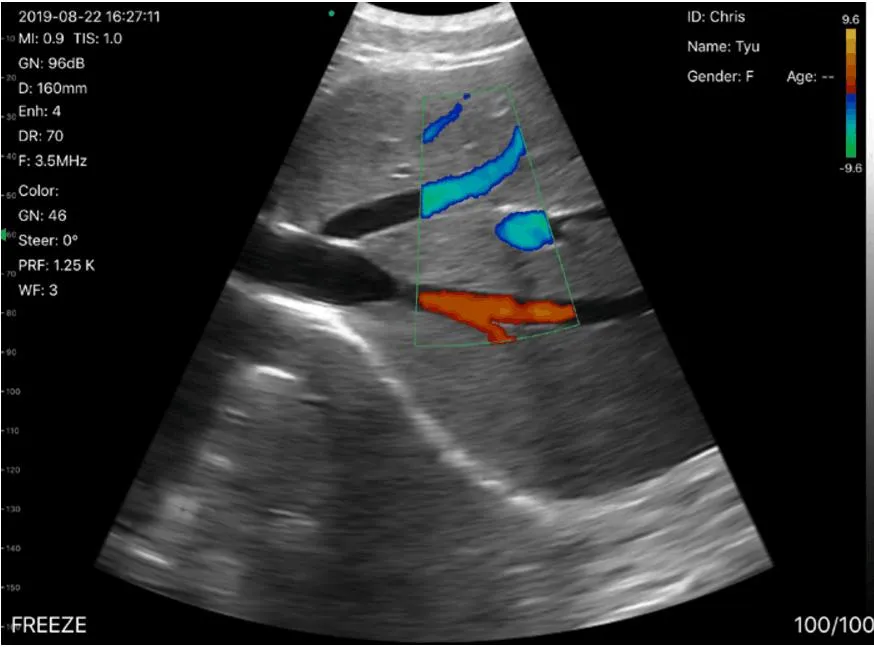

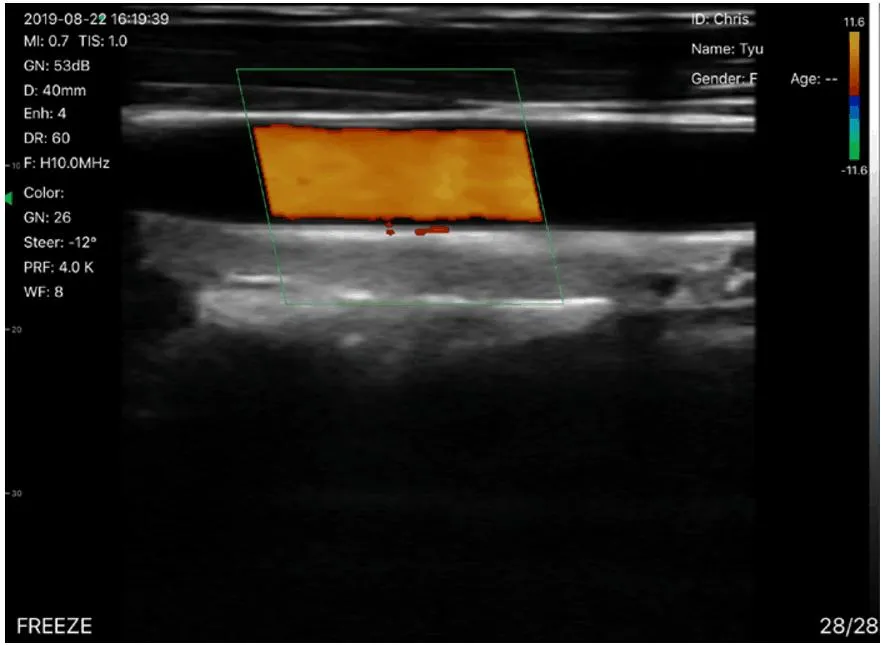

- Display mode: B, B/M, Color doppler version with B+Color, B+PDI, B+PW
- Probe element: 128
- Channel of RF circuit board: 32
- Probe frequency and scan depth, head radius/width, scan angle(convex):
Convex head 3.5MHz/5MHz, 90/160/220/305mm, 45mm, 50°

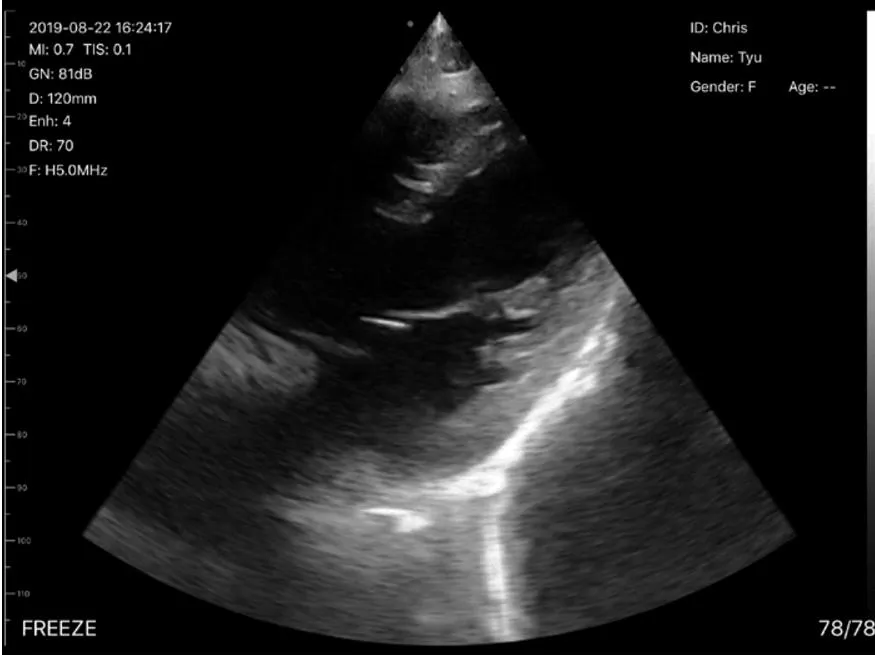

Convex head by phased array(cardiac) scan mode: 3.5MHz/5MHz, 90/160/220/305mm, 45mm, 80°
Linear head 7.5MHz/10MHz, 20/40/60/100mm, 40mm
- Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
- Cineplay: auto and manual, frames can set as 100/200/500/1000
- Puncture assist function: In-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.
- Measure: Length, Area, Angle, heart rate, Obstetrics
- Image save: jpg, avi and DICOM format
- Image frame rate: 18 frames/second
- Battery working time: 2.5 hours
- Battery charge: Wireless charge, takes 2 hours
- Dimension: L156×W60×H20mm
- Weight: 220g
- Wifi type: 802.11g/20MHz/5G/450Mbps
- Working system: Apple iOS, Android, Windows

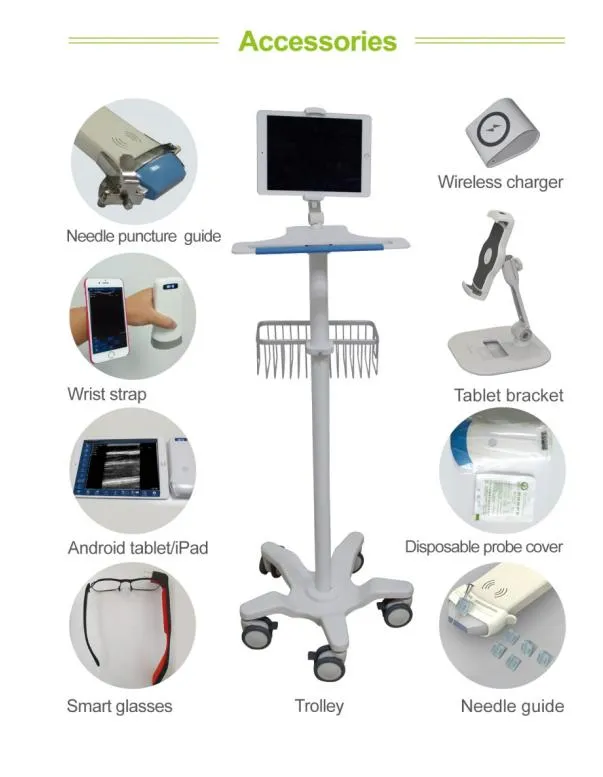

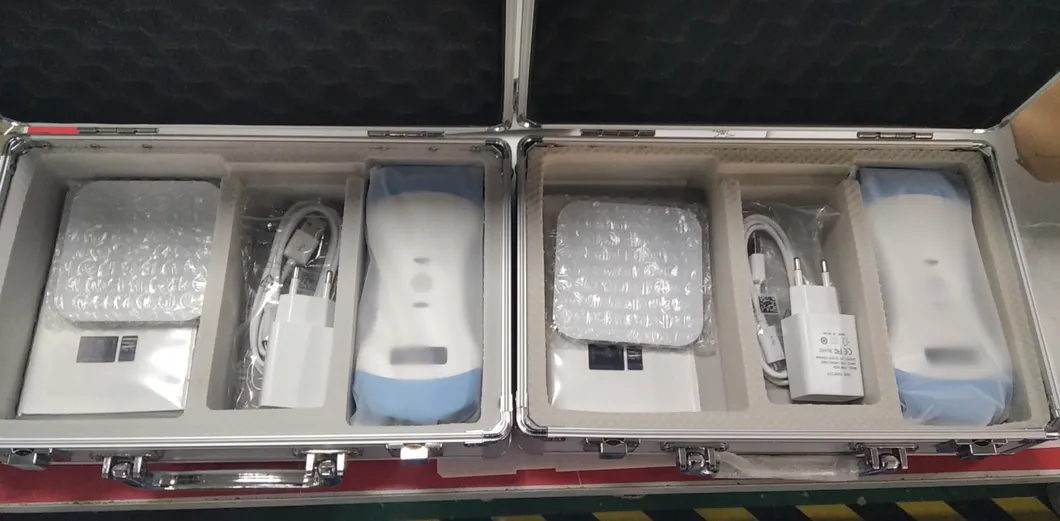

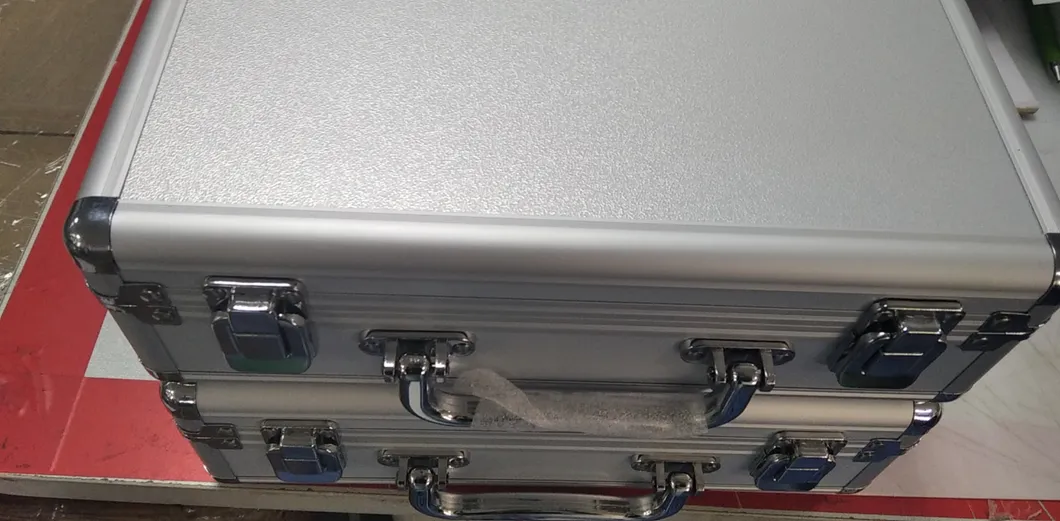

7. Accessories

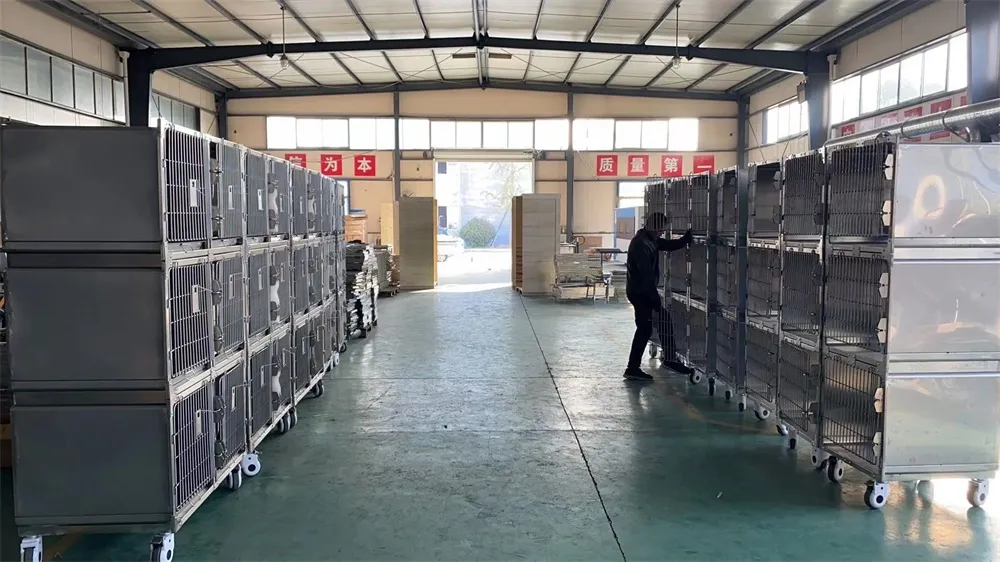

8. Factory & Production

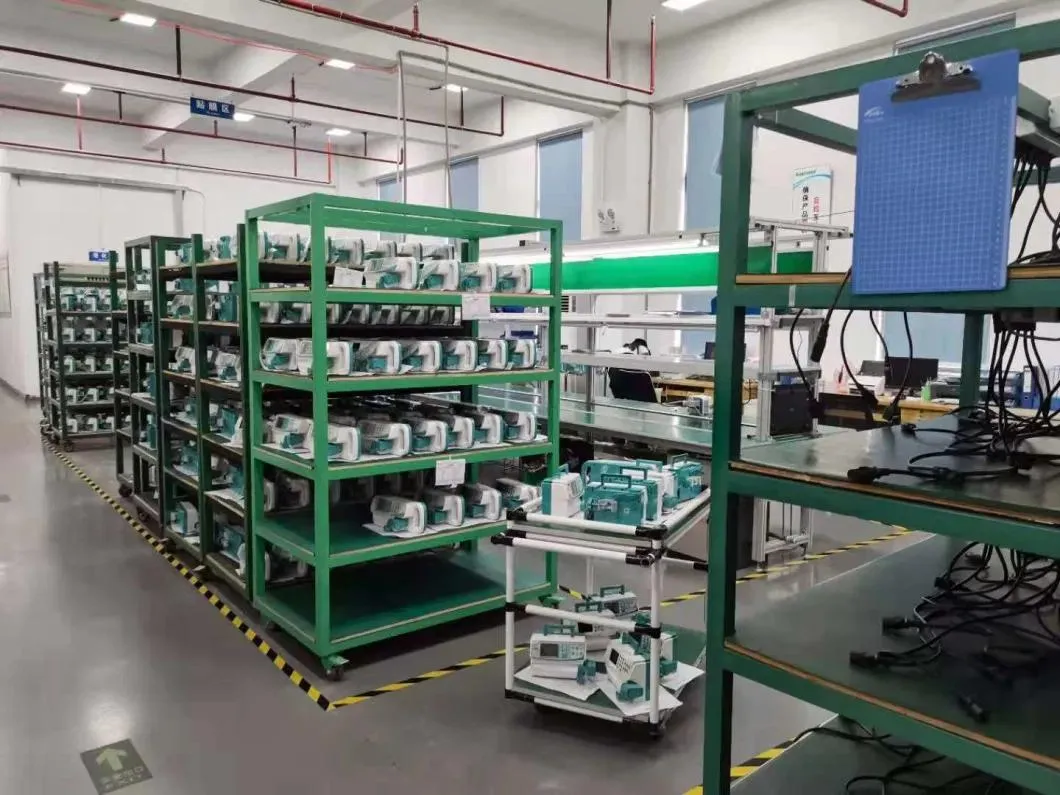

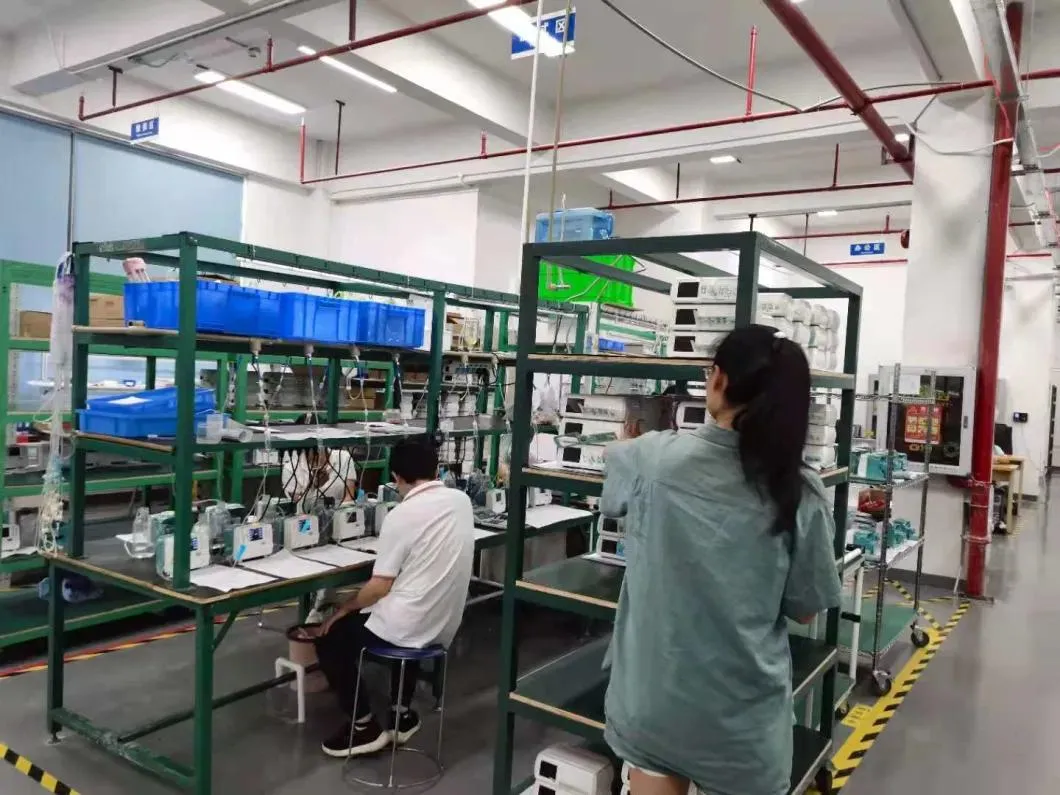

After several years' development, the production facility is today one of the professional suppliers of medical equipment and veterinary equipment. The full range of products includes infusion & syringe pumps, Ultrasound, Anesthesia Machines, Ventilators, Patient monitors, and Blood pressure monitors. Working with a quality management system according to ISO for years, quality is always the first concern.
Frequently Asked Questions
Q1: Which operating systems are compatible with this scanner?

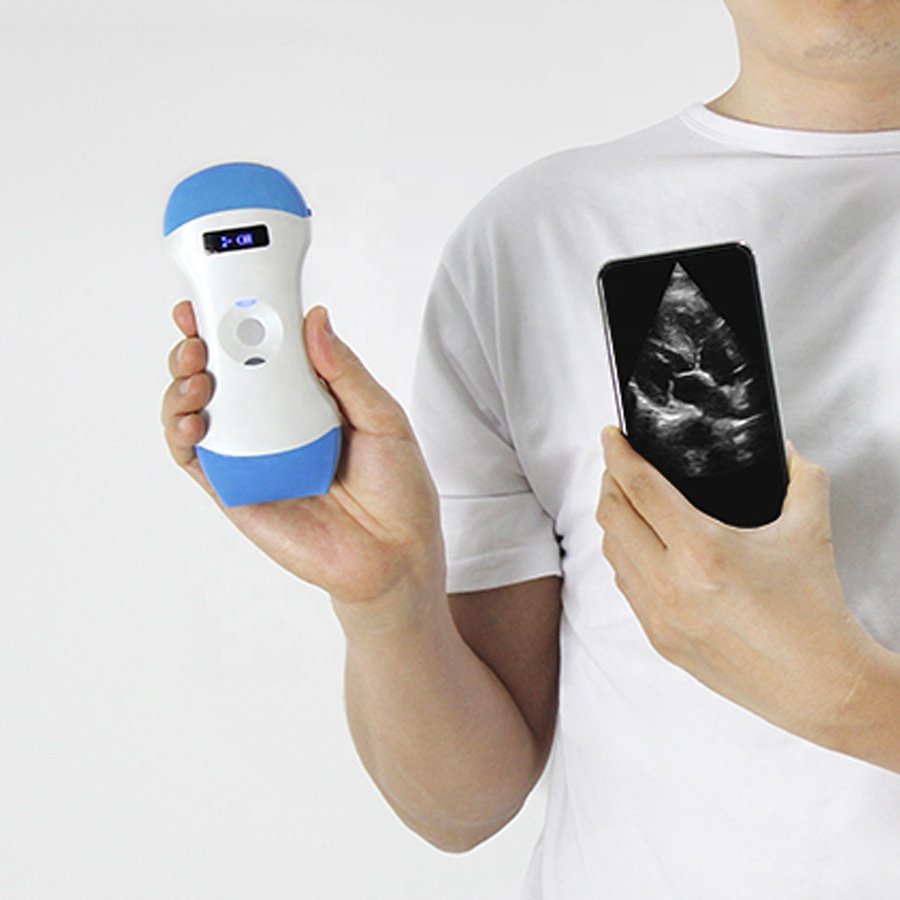

The C5LC handheld scanner is compatible with Apple iOS, Android, and Windows systems.
Q2: How long does the battery last on a single charge?
The scanner provides approximately 2.5 hours of continuous working time and supports convenient wireless charging.
Q3: What imaging modes does the device support?
It supports multiple display modes including B, B/M, and Color Doppler versions (B+Color, B+PDI, B+PW).
Q4: Does the scanner have puncture assistance?
Yes, it includes in-plane and out-of-plane puncture guide lines and automatic blood vessel measurement functions.
Q5: What is the weight and dimension of the device?
The device is highly portable, weighing only 220g with dimensions of L156×W60×H20mm.
Q6: How long does it take to fully charge the device?
Using the wireless charging method, it takes approximately 2 hours to reach a full charge.
