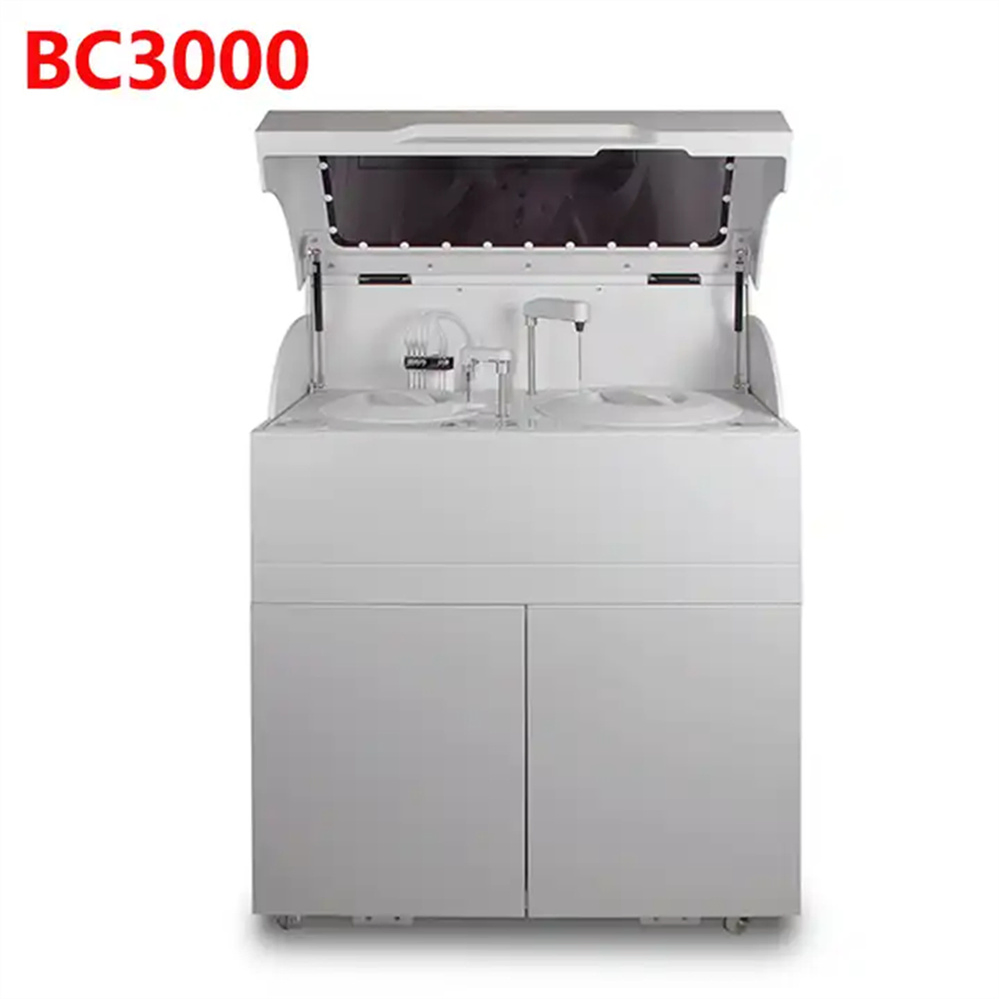

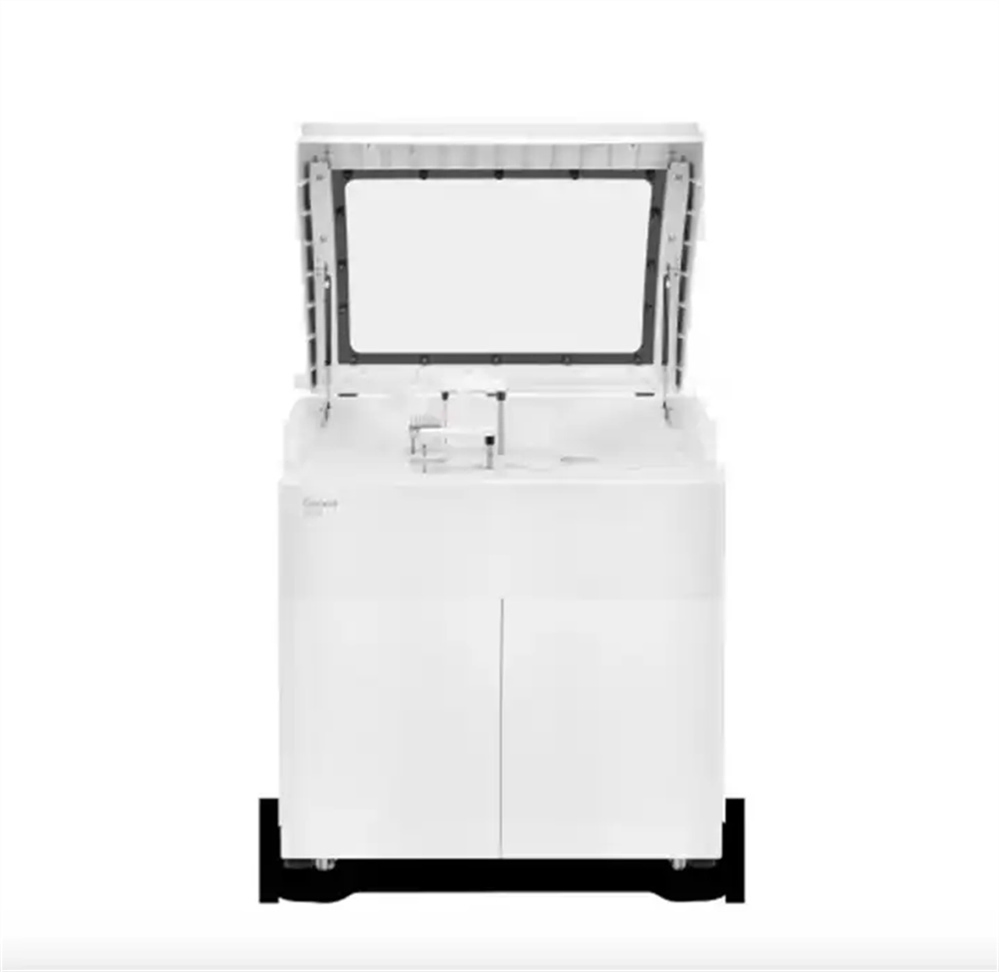

Advanced Blood Testing Analyzer for Global Health Innovations

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
BC3000
Certification
ISO13485
Group
Middle-aged and Old
Properties
Diagnosis & Injection
Weight of Cabinet
55kg
Weight of Main Unit
105kg
Atmospheric Pressure
86kpa~106kpa
Relative Humidity
≤93%
Transport Package
Carton
Specification
880mm(L)× 650mm(W)× 630mm(H)
HS Code
9027809990
Production Capacity
10000 Unit/Units Per Month
Product Overview
Fully Automatic Clinical Chemistry Analyzer
Introduction

The Automatic Biochemistry Analyzer is designed to measure various biochemical indicators by analyzing blood and other body fluids. Combined with clinical data, its comprehensive analysis assists in diagnosing diseases, evaluating organ functions, identifying disease factors, and determining treatment standards.

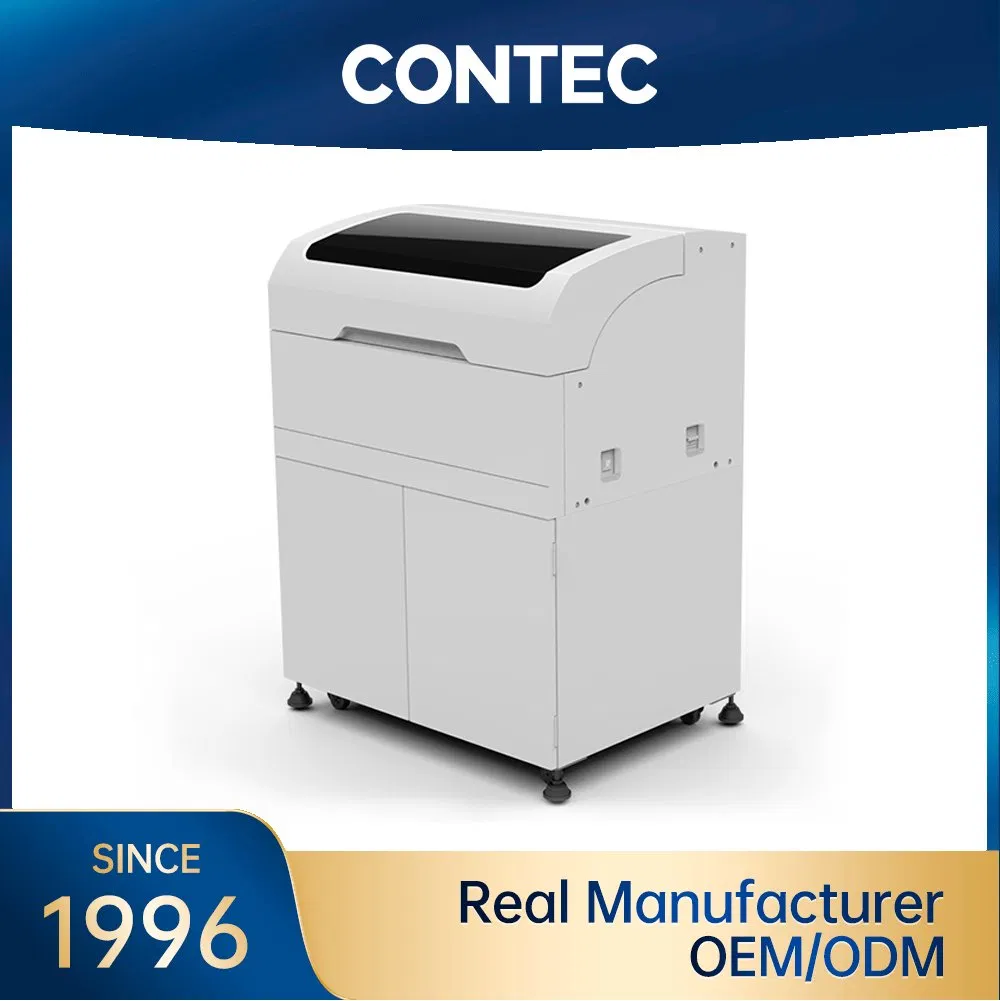

Biochemistry Analysis Machine BC3000
Key Functions
  • Test Modes: Supports continuous/random test modes and emergency sample priority testing.
  • Methodologies: End-point, Fixed-time, and Kinetic methods; supports dual-reagent and di-wavelength testing.
  • Probe Features: Reagent probe equipped with liquid level detection and full collision protection.
  • Automation: Automatic cleaning function for reaction cups to ensure accuracy.
  • System Integration: Supports external barcode scanning and seamless connection with Laboratory Information Management Systems (LIS) for real-time data sharing.
  • Analysis Tools: Recalculation functions, print preview, and multiple quality control charts (multiple-rule, cumulative, and twin plot).
  • Cooling System: Semiconductor cooling for uninterrupted, stable, and reliable operation.
Performance Specifications
Light Source
Halogen-tungsten lamp, 12V 20W
Temp Control
37°C (±0.1°C Accuracy)
Reaction Disc
81 cuvettes, 5mm optical length
Wavelengths
8 Standard (340nm-670nm)
Absorbance Stability
Change ≤ 0.005
Repeatability
CV ≤ 1.0%
Sample Carry-over
≤ 0.5%
Power Supply
AC100V-240V, 50/60Hz

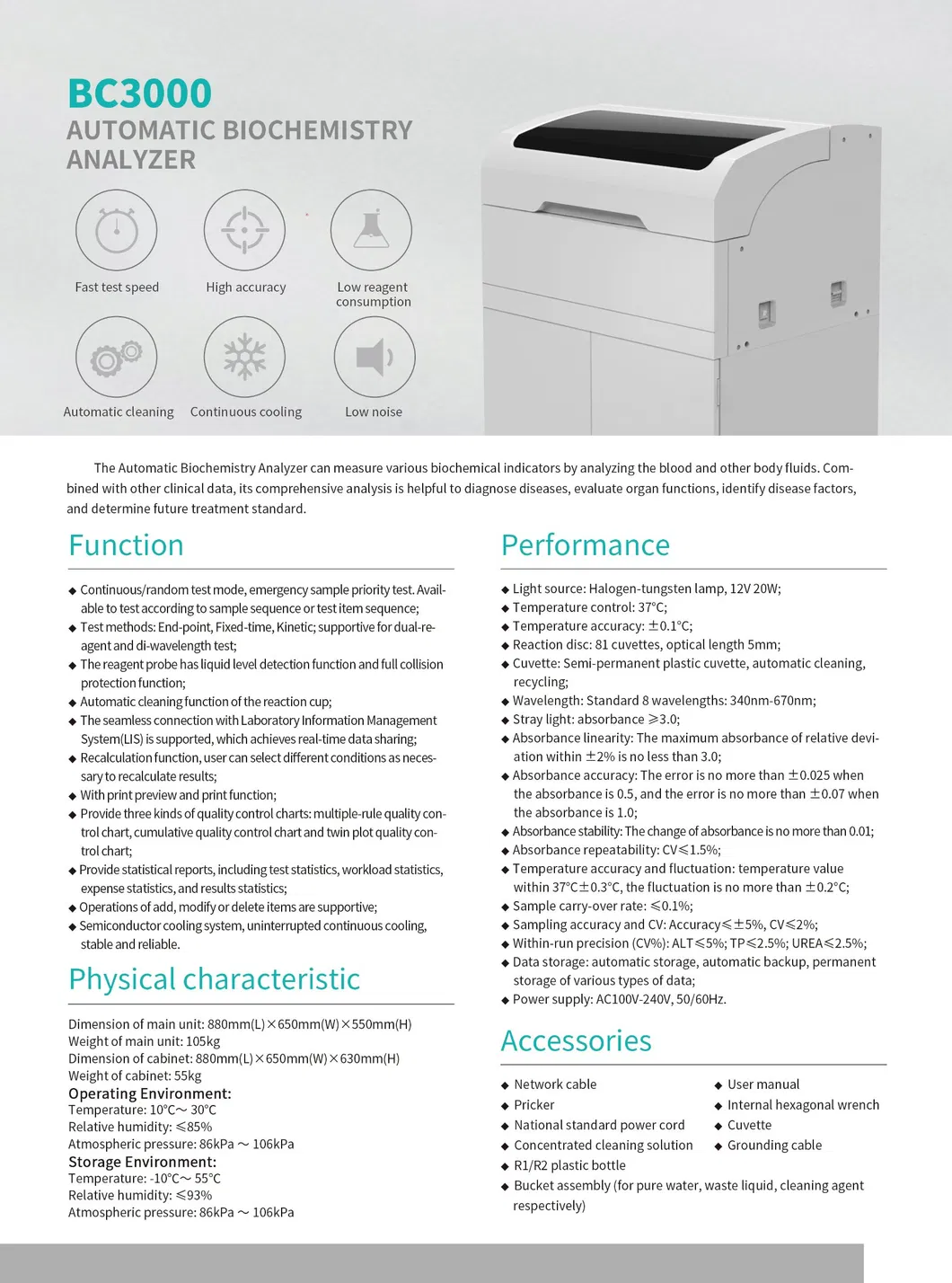

Performance Data Chart
Accessories & Environment

Standard Accessories:

  • Software CD & User Manual
  • Power cord, Grounding & Network cables
  • Cuvettes & Prickers
  • Concentrated cleaning solution
  • R1/R2 plastic bottles & Bucket assembly

Operating Environment:

  • Temperature: 10~30ºC
  • Humidity: ≤85%
  • Pressure: 86kPa~106kPa
Product Gallery
Laboratory Equipment Display 1 Laboratory Equipment Display 2 Laboratory Equipment Display 3
System Interface
Frequently Asked Questions
Q1: What types of tests can the BC3000 perform? A: It supports various biochemical indicators via End-point, Fixed-time, and Kinetic methods, suitable for blood and body fluid analysis.
Q2: How does the system handle emergency samples? A: The analyzer features an emergency sample priority test mode, allowing urgent samples to be processed ahead of the standard sequence.
Q3: Does the device require manual cleaning? A: No, the BC3000 includes an automatic cleaning function for the reaction cups and recycling of semi-permanent plastic cuvettes.
Q4: Can this machine connect to our laboratory network? A: Yes, it supports seamless connection with Laboratory Information Management Systems (LIS) for real-time data sharing and barcode scanning.
Q5: What is the stability of the light source? A: It uses a stable 12V 20W Halogen-tungsten lamp with an absorbance stability change of no more than 0.005.
Q6: What are the space requirements for installation?
A: The main unit and cabinet combined measure approximately 880mm(L) × 650mm(W) × 1180mm(H) with a total weight of 160kg.
